Urban Track

Urban Track screens are track guided outdoor blinds that are easy to lift up or pull down because they have a spring-loaded system for ease of operation. They work like a garage lift-up door and can be opened to varying heights, making them ideal as an adjustable sun shade against the morning or late afternoon sun. When used with shade cloth, these roll up outdoor blinds also act as outdoor privacy and wind screens for decks, or you can have the clear PVC option for better waterproof protection.

These quality outdoor roller blinds are great as PVC waterproof blinds for balcony, patio or deck areas, or can be used as a sunshade retractable side awning for privacy. The clear PVC screens can also be used in combination with a standard sunscreen roller blind as a practical solution to combine weatherproofing with sunshade. The Urban Track outdoor blinds have the option to be motorized.

Urban track with mesh and spring system

Urban track with Atmosphere mesh

Urban track spring system

1. PVC SPECIFICATION FOR URBAN TRACK

Achilles DS (Dimensionally Stable) is a clear PVC, manufactured using a calendered process. This dimensionally stable product reduces the variances of stability in variable temperatures. It blocks 93% of UV radiation, has high clarity and helps eliminate long-term wrinkles. It's made in Japan, available 137 cm wide in 0.75 mm thickness. We use it for our track blinds (Urban Track and Ziptrak). It has up to 93% UV Block.

2. MESH SPECIFICATION FOR URBAN TRACK

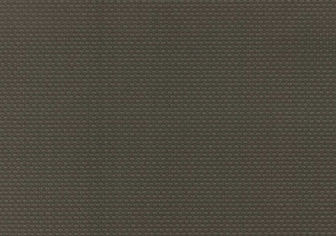

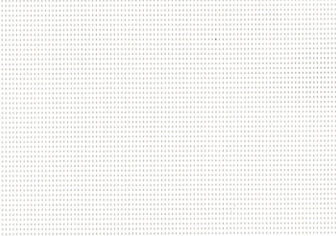

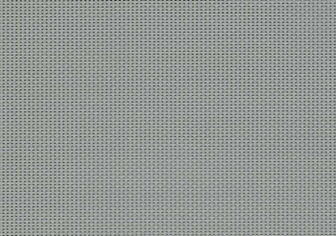

Shade View Mesh - Urban

cleverly diffuses light, lends a pared-back finish and optimizes views but it still protects you and your home from the elements like harsh wind and rain. Wave 2x2 construction Denier Polyester yarn with weight 573 gsm2.

Available in 15 colours across the range.

Fire retardant, Mildew resistant, 5% Openness factor

Up to 97% UV Block and up to 96% wind and rain block

Can be used for Urban Track, Ziptrak, Cafe style and Hand roll screens.

If you wish to see another option please ask our sales representative.

Shade View External Blind Mesh

3. SPLINE & HARDWARE COLOUR RANGE FOR URBAN TRACK

There are two available colours for Urban Track's spline Pearl White and Black. The same colours are available for Pelmets, flashing, guides and bottom rail + it can be powder - coat to any Dulux colours.

Urban Track spline and guides

Urban Track bottom rail and guides

Spline colour for Urban Track

Black

White

4. FLASHING & PELMET, BOTTOM RAIL AND GUIDES FOR URBAN TRACK

Urban Track's optional parts are flashing (size is 135 mm) or full pelmet headbox - 135 mm – drops up to 2 800 mm. The pelmets are available in steel or rust free aluminium.

Urban Track's hardware can be powder-coat to Dulux range colours.

Urban Track pelmet black

Urban Track bracket

Urban Track bottom rail

5. MOTORISATION AND EXTRA WIDE BLINDS URBAN TRACK

Motorisation is a popular choice for many household and commercial applications. The motor is hidden withing the pelmet. Motorized option is perfect for large blinds, blinds mounted in hard reach locations or for people with limited mobility. It is only available with Sunscreen Mesh option.

The maximum size of Urban Track is 5 000 mm x 3 000 mm.

6. USER GUIDELINES AND CARE INSTRUCTION FOR URBAN TRACK

Screens should be retracted in periods of high wind. Rolling up fabric when wet can encourage growth of Mould, Mildew and Cloudiness. Ensure bottom locks are engaged when screen is lowereto prevent fabric moving in wind Ensure all fasteners are secured adequately Flashings are recommended where possible to prolong fabric lifespan Powder coating to be cleaned regularly.

Spring-balanced operation

The blind should be hand-operated from the centre of the bottom bar. This ensures the material rolls evenly onto the top tube. The blind should always glide smoothly and easily along the track. You may find Urban Track spring-balanced blinds are a little tricky to operate during windy conditions due to the pressure of the wind on the blind material. Use your hand to push against the blind material to reduce this pressure and then operate the blind.

Motorised operation

Motorised blinds are operated by remote control and cannot be hand-operated and doing so may damage the blind. Care must be taken when operating motorised Urban Track blinds in windy conditions. They must be supervised whilst raising and lowering at all times.

Hardware maintenance

In dusty and seafront locations, approximately once a year you may wish to add lubricant to assist in the continued smooth operation of the blind. You must use silicone spray, such as food grade CRC 808. As a general rule cleaning should take place every six months. Carefully remove any loose surface deposits with a wet sponge. Use a soft brush (non abrasive) and a mild household
detergent (do not use solvents) in warm water, remove dust, salt and other deposits. Rinse off with clean fresh water.

Sunscreen Mesh

Sunscreen mesh fabric should be brushed regularly with a non-abrasive brush and hosed down with clean cold water and left to dry completely before rolling up – this is important to prevent mould and mildew growth. For more stubborn stains a solution of mild detergent and luke-warm water. Rinse thoroughly and allow to dry completely before rolling away. Treat stains as soon as possible.

Achilles PVC

The use of harsh chemicals for cleaning should be avoided, as these can scratch the surface or attack the material. Clear PVC should only be cleaned with a diluted solution of mild soap and warm water. Rinse with clean water and dry with a soft cloth or a sponge. Do not use solvents or chemical cleaners. Do not expose sheets to abrasion. We recommend Vuplex plastic cleaner/polish.
